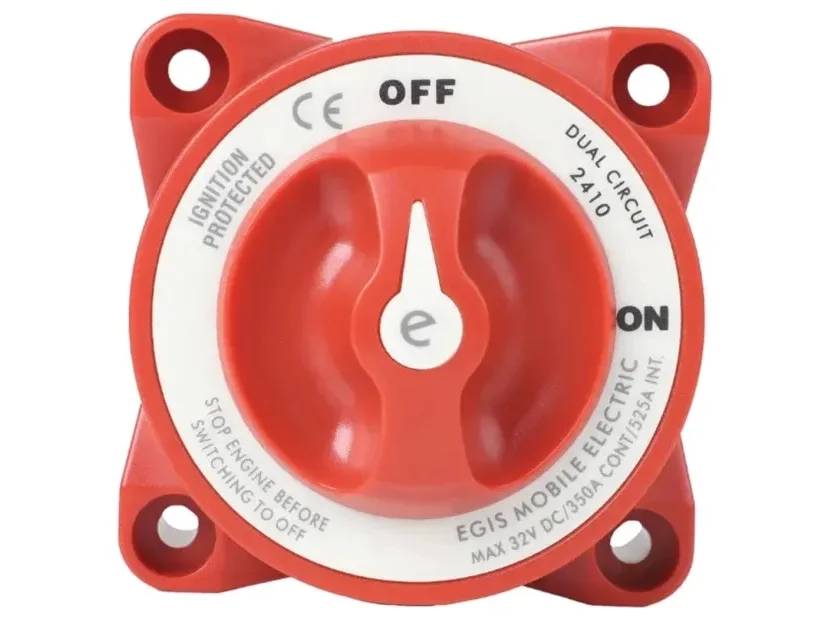

EGIS 2410 e-Series 350A Dual Circuit Battery Switch Off/On
$67.10
10 in stock (can be backordered)
Description
Description
EGIS e-Series 350A Dual Circuit Battery Switch Off/On
Model: 2410
- Ignition Protected
- Flexible Mounting Options
- 4 Year Leading Warranty
- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
- Safe for installation in closed compartments with potential explosive gases.
- Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
- Isolates Electrical Loads from batieries when electrical system is not in use, ensuring current draw from load side of switches is eliminated.
Specifications
| Maximum Voltage (Single Circuit) | 48V DC |
| Maximum Voltage (Selector / Dual Circuit) | 32V DC |
| Stud/Thread Size | 3/8″-16 |
| Ring Terminal Size Acceptance | 3/8″ (M10) |
| Mounting Holes | 1/4″ (M6) Screw |
| Panel/Bulkhead Mount Hole Size | 3-5/8″ Diameter |
