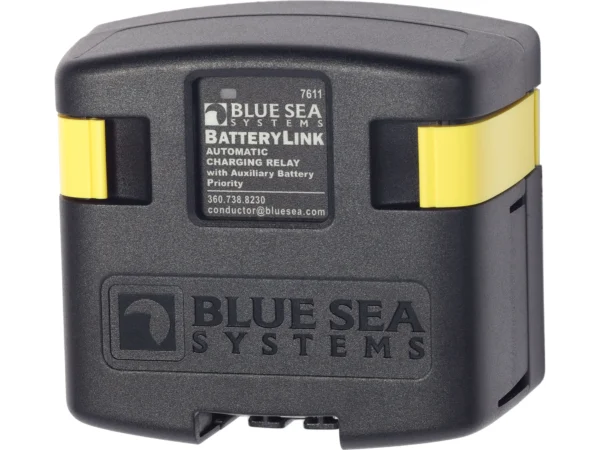

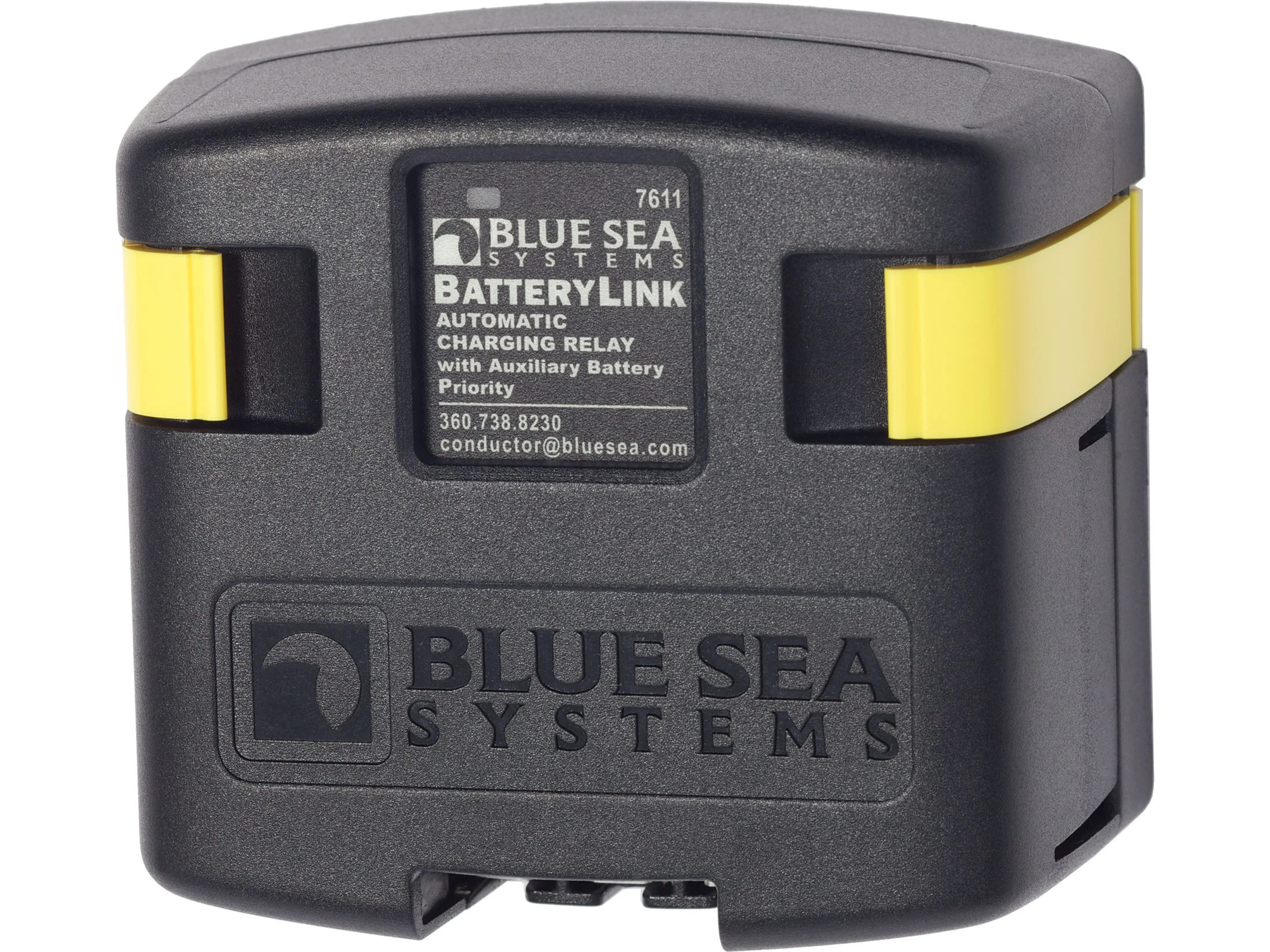

Blue Sea Systems BatteryLinkTM Automatic Charging Relay – 12V/24V DC 120A
Model: 7611-BSS
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8 (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4 in × .032 in male quick connect terminals for ground and optional features
- Largest battery bank cannot exceed Group 27
Automatically shares single source of charge with Auxiliary Battery
Specifications
| 12V DC |
