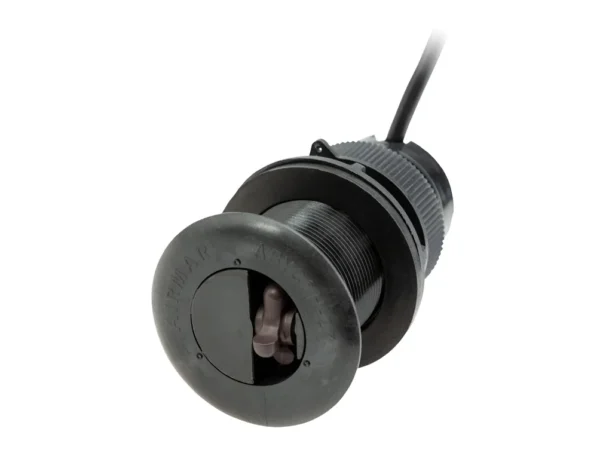

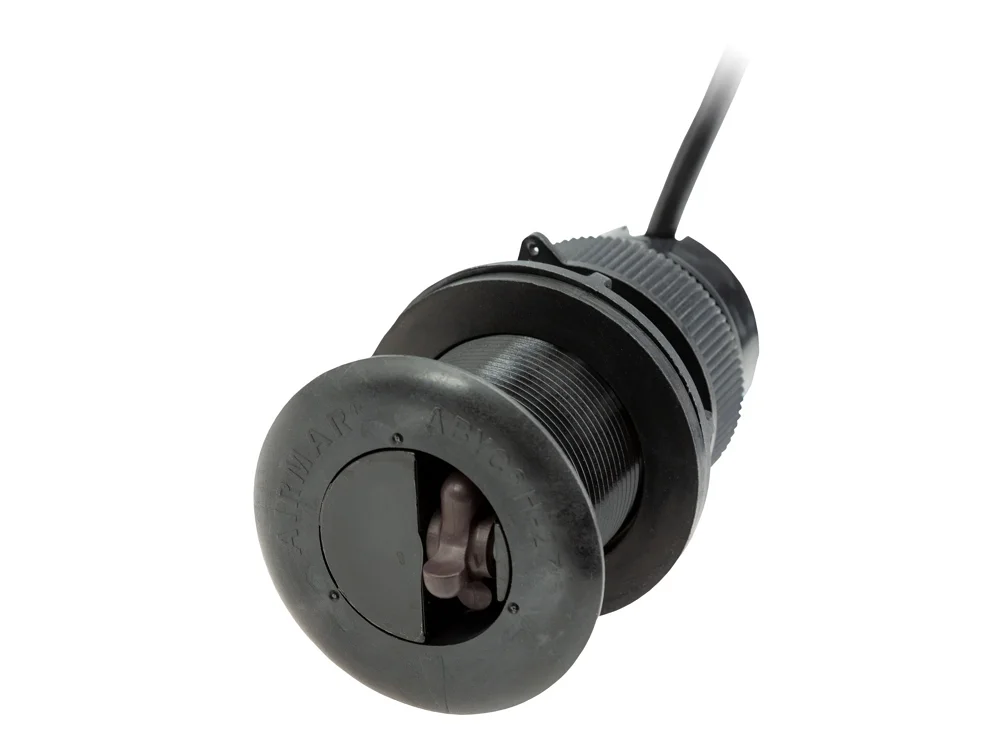

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull
$419.00
5 in stock (can be backordered)
Description
Description
Simrad IDST-810 active Depth, Speed, Temperature thru-Hull plastic 235 kHz transducer.
Model: 000-15735-001
- 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
- Integrated attitude sensor for heel and trim benefits sailing and power boats
- Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
- DST810 stores configurations and delivers data to the NMEA 2000(R) network.
- Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
- Popular depth sensor for shallow water performance.
Specifications
| Urethane | |
| Hull Deadrise | Up to 22 deg |
| Data Update Rate | Depth 1X/second |
| Data Update Rate | Speed 5X/second |
| Attitude Accuracy | +/- 1 deg nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6 feet) |
| Maximum Depth Range | Up to 100 m (330 feet)-NMEA 2000(R) |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10 feet) |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC-per NMEA 2000 |
| Supply Current | <200 mA-per NMEA 2000(R) |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20 feet) DeviceNet-NMEA 2000(R) |
| Temperature Sensor Accuracy | +/-0.5 degC (+/-1.8 degF) |
| Temperature Sensor Range | -10 degC to 40 degC (14 degF to 104 degF) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 |
What’s in the Box:
- DST-810 Insert
- Plastic Housing
