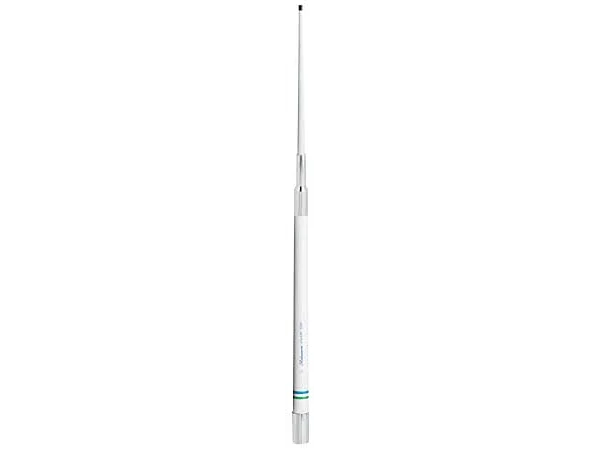

Shakespeare 5230 14ft Galaxy VHF Antenna 2 PC 8DB
$659.99
5 in stock (can be backordered)
Description
Galaxy Style 5230
14 ft. (4.26 M) VHF Marine Band 8dB
5/8 wave over -wave dipole
The ultra-performer, Shakespeare’s Galaxy Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
Brass and copper elements for maximum range and efficiency
Stainless steel ferrule with standard 1-inch-14 thread
Includes 20ft RG-8/X cable and a PL-259 connector
FEDEX shipable
2 Sections: Base 94", Tip 74" – FEDEX shipable
Suggested mount(s): 409-R 410-R
Galaxy 5230 Specifications
Band: VHF Marine Band
Antenna Gain: 8dB
Max. Input Power: 200 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 3 MHz within 2.0:1 VSWR
Ferrule: Stainless steel
Coax Supplied: 20 ft of RG-8/X
Connector Supplied: PL-259, not attached
Color/finish: Galaxy White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: DC Grounded – The antenna will read shorted on continuity test.
Shakespeare
Limited Warranty: 5 years
