Name: Lewmar Size 03 Low Profile Hatch Flange Base
Brand: Lewmar
SKU: WT-LEW39903030
Availability: InStock

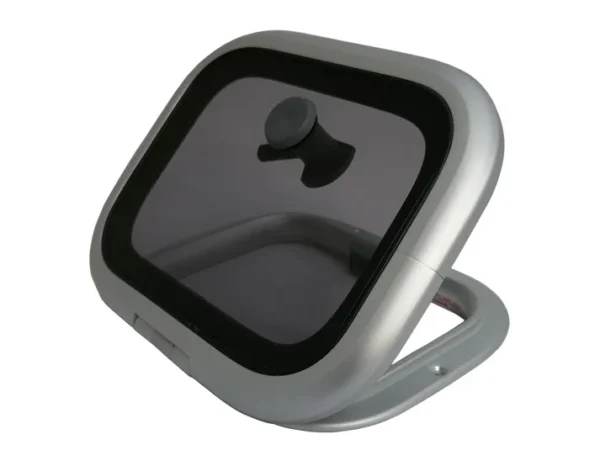

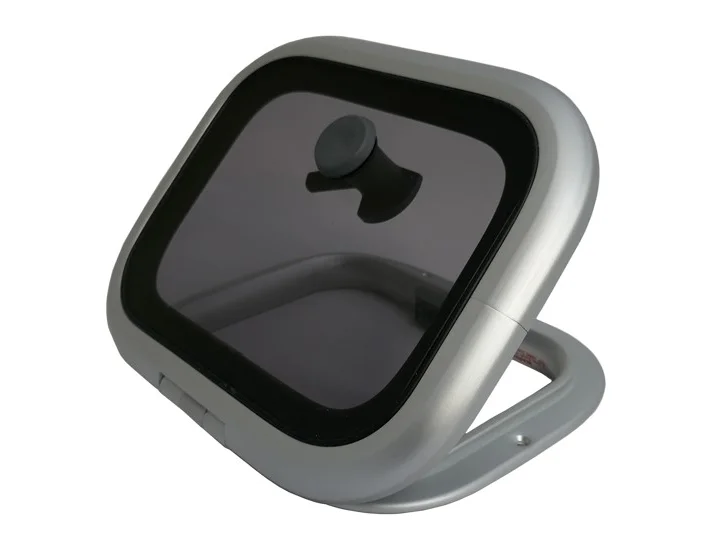

Lewmar Size 03 Low Profile Hatch Flange Base

$514.95

Lewmar
Model: 39903030

Availability: 2 in stock (can be backordered)

The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sailboats and the larger hatches can even be used as foredeck hatches. The hatch also features Lewmar’s unique sealing system allowing easy acrylic replacement

All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

Support System	Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Self Supporting	9/16	Smoke Gray	3.5	5/16

Dimensions

Length X (in)	Width Y (in)	Height Z (in)	Radii R (in)	Cut-Out Length X1 (in)	Cut-Out Width Y1 (in)	Cut-Out Radii R1 (in)
9 11/16	11 7/8	1	2 7/8	6 15/16	9 1/8	1 11/16

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.

Weight	5.000000 lbs
