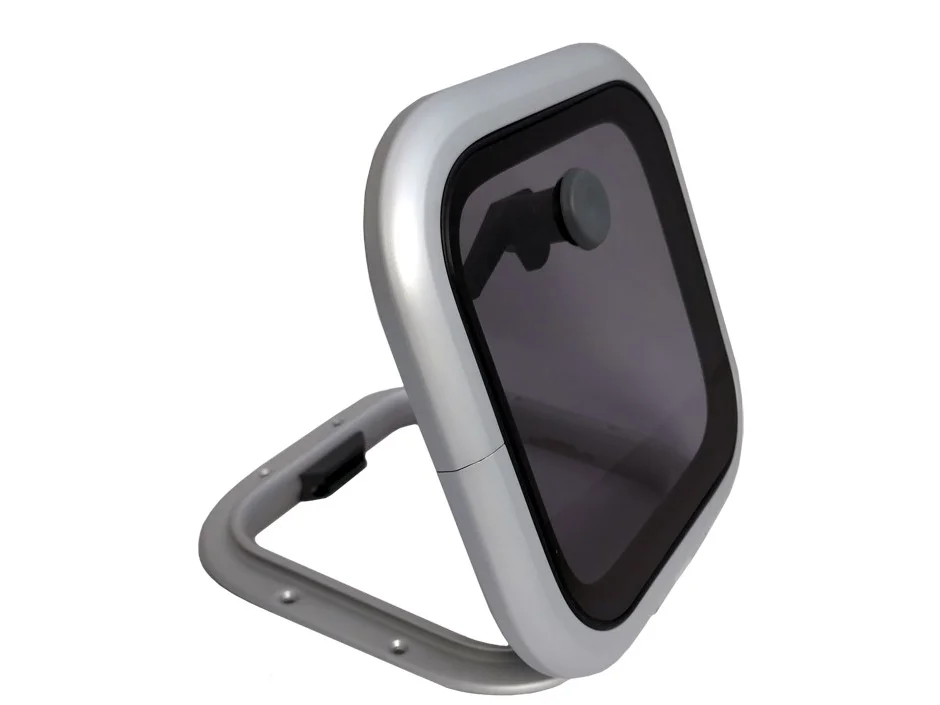

Lewmar Size 00 Low Profile Hatch Flange Base - Image 1
Click to enlarge

Lewmar Size 00 Low Profile Hatch Flange Base

$505.95

2 in stock (can be backordered)

Add to compare
Add to wishlist
SKU: WT-LEW39900030 Categories: , Tags: , , ,
Description

Description

The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sail boats and the larger hatches can even be used as foredeck hatches on smaller to mid size yachts

All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.


  Specifications
Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 3.5 5/16
  Dimensions
Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in)
11 1/16 11 1/16 1 2 7/8 8 5/16 8 5/16 1 11/16

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
