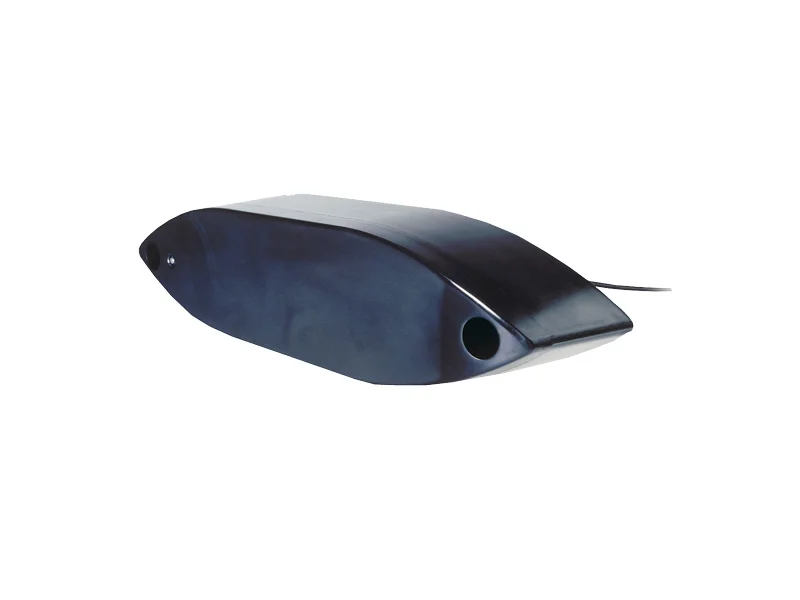

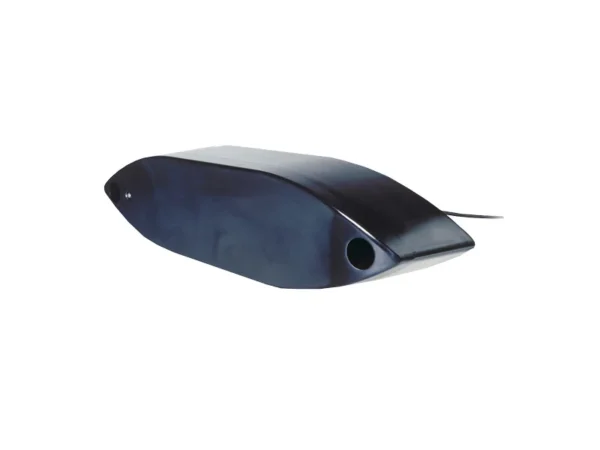

Furuno R109LH Transducer
$3,400.00
Available on backorder
Description
Description
Furuno R109LH Chirp-ready External Mount
Model: R109LH
- Depth and fast-response water-temperature sensor
- 2 kW
- Low frequency: 38 to 75 kHz
- High frequency: 130 to 210 kHz
- 117 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 60, and 200 kHz plus everything else in the bandwidth
- Urethane housing with fairing for optimal performance
The R109LH is an externally mounted, 2 kW transducer which delivers excellent target resolution, bottom discrimination, and bait and game-fish separation. The R109LH is packed with a fifteen-element, low-frequency array that operates at anywhere between 38 and 75 kHz, delivering great depth capability down to 1,829 m (6,000 feet).
The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow (8 deg to 4 deg) beam that provide tremendous bottom detail and fish-target discrimination at depths to 457 m (1,500 feet).
Specifications
| 19 deg to 10 deg port-starboard beamwidth | |
| Beam Angle High | 8 deg to 4 deg beamwidth |
| Maximum Depth Low | Maximum depth of 1,829 m (6,000 feet) |
| Maximum Depth high | Maximum depth of 1,829 m (6,000 feet) |
| Hull Material | Compatible with all hull materials |
| Hull Deadrise | 0 deg to 22 deg |
What’s in the Box:
- R109LH Transducer
- fairing
- Mounting hardware
