Blue Sea Panel Enclosure 6 Blank Circuits Surface Mount System

Description

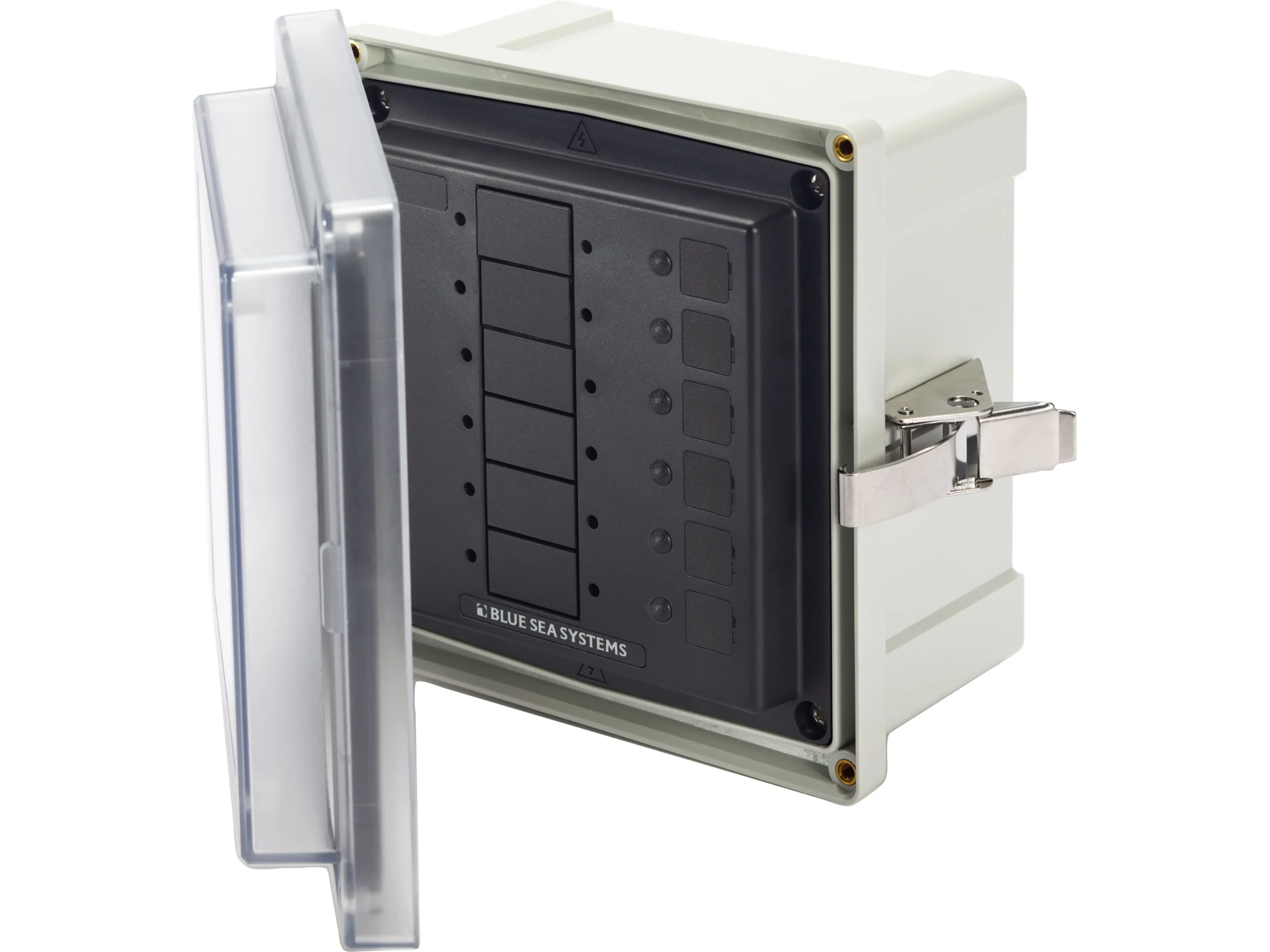

Blue Sea SMS Surface Mount System Panel Enclosure – 6 Circuit Blank

Model: 3113-BSS

• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included

Specifications

Minimum Operating Temperature

-40 deg C
Maximum Operating Temperature	85 deg C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0 x 6.0 in x 4.0 in
Exterior Overall Dimensions	7.6 in x 7.4 in x 4.7 in
Mounting Hardware	1/4 in Diameter
